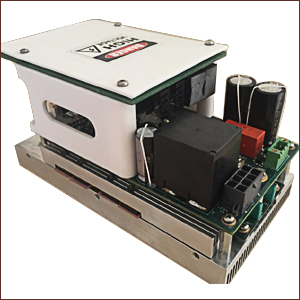

HIGH VOLTAGE POWER SUPPLY UNIT is a power source specially designed to power commercially
available 1200 Watt Magnetron. The input power 26V ±4V DC makes it ideal for DC power input
requirements. The system is designed using latest power electronics technique and hence, it’s extremely
reliable and rugged.
| Technical Specification | |
| INPUT | 26 ±4V DC <50A |
| OPERATING TEMPERATURE | 0º C TO +65º C |
| HUMIDITY | <95% NON CONDENSING |
| CONNECTOR | MOLEX, PHOENIX |
| PCB | IPC-A-600 |
| ASSEMBLY | IPC-A-610 |
| COOLING | FORCED AIR |
| SOLDERING | IPC J-STD-001 |
| WEIGHT | <2 kg |
| DIMENSION | 8 X 4 X 4 Inches |
| COMMUNICATION | RS232 TTL SERIAL LINK |
| WARRANTY | 24 MONTHS |
| APPLICATION |
AIRCRAFT CABIN
MICROWAVE OVEN |
